Inclined frame
› DELFTship forum › Hull modeling › Inclined frame
- This topic has 10 replies, 4 voices, and was last updated 11 years, 1 month ago by
raf pali.
-
AuthorPosts
-
-
August 15, 2011 at 12:25 #35021
Hrvoje
ParticipantI need to insert inclined frames in the fore and aft peak region (making wooden ship model). Is it possible to do this with Delftship free version?
Thank you for any help!
Kind regards, Hrvoje
-
August 25, 2011 at 16:49 #35046
Hrvoje

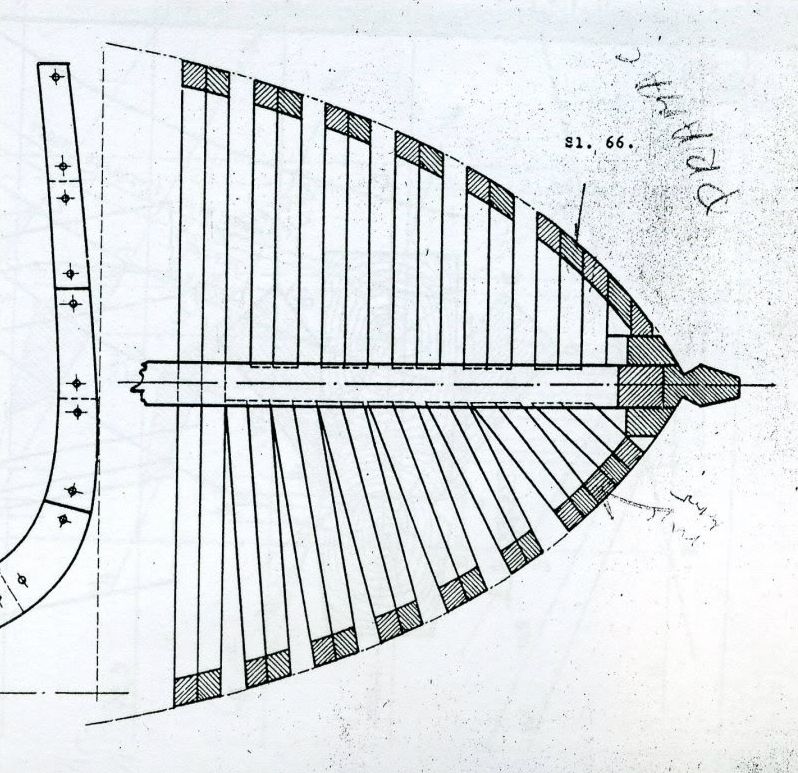

ParticipantI would like to insert frames like on this drawing (starboard side)
Still can’t insert the inclined vertical plane and obtain the contour of the frame.
Kind regards, Hrvoje
-
August 25, 2011 at 16:57 #35047
Rob Hewitt
ParticipantHi Dida
Have you tried creating a bulkhead and then moving it to the angled position that you want. if you make the model transparent you can soon see if the bulkhead protrudes through the hull or if it shy of the hull skin. I have done this it is fiddley but it does work. -
August 25, 2011 at 18:20 #35048
Hrvoje
ParticipantHi, Hewitt!
No, I did not try this method. I have DELFTship Free and can’t find, in the menu, where is the option for work with bulkheads. Also, I can’t find the same thing in the manual .
Thank you for the answer.Kind regards, Hrvoje
-
August 25, 2011 at 22:11 #35049
Rob Hewitt
ParticipantSend me a pm with your email and I will send you the basic part that I use to create bulkheads. It is just a triangular vertical surface ( you can move the points into any plane that you want ) you can add as many points around the triangle and move them to make it the shape that you want to fit your hull profile. Also what is the size of your Deftship model and I will try and make it about the right size.
Regards Rob -
August 26, 2011 at 16:09 #35051
Hrvoje
ParticipantThank you Rob! My e-mail is hrvoje.penavin@optinet.hr
This time I can’t find PM button on the site. Each day one new “can’t” 🙂
Regards,
DidaKind regards, Hrvoje
-
March 13, 2012 at 23:18 #35680
Hrvoje
ParticipantI was referring to post #2345.
the video can be found in the video section. At the moment it’s the only vifeo, the idea is to upload more.
Perhaps you guys have suggestions on what you would like to see demonstrated….Hi Marven! Can you make a video “How to make inclined frames” (not 90 deg. to longitudinal plane)?
Kind regards, Hrvoje
-
March 16, 2012 at 02:19 #35690
Mahmoud Reda
Participantdose DS able to draw construction ?
what version can do that ?
i’m using DS v4.03
-
March 20, 2012 at 21:13 #35718
Hrvoje
ParticipantTo make drawings of construction I use CAD program. It is possible to import/open DXF files made in DelftShip into the CAD program.
Kind regards, Hrvoje
-
March 25, 2012 at 13:35 #35747
Hrvoje
ParticipantIt is possible to draw inclined frame following Marven’s instructions given in video “Modelling a curved transom”. It is, actually, inclined bulkhead.
Instead cylinder a box has been added.
On the picture “Vjezba.jpg” is bulkhead. It is possible to see, on the lower part, grey shadow. At the moment I can’t get rid of it. It must be something with surface defined with 3 points instead 4. :unsure:
Also, I have leak points on the bulkhead edge which is in contact with hull. I don’t need these leak points.Attachments:Kind regards, Hrvoje
-
May 4, 2012 at 13:06 #35952
raf pali
ParticipantIt is just a triangular vertical surface ( you can move the points into any plane that you want ) you can add as many points around the triangle and move them to make it the shape that you want to fit your hull profile.
Hi to you all.
I would much appreciate your kind help if you would share the “triangular technique” for bulkhead’s placement. So far I’ve used one face of an added box. How dos that sound? Am I on the right track?
Regards
-
-
