      Can somebody help about this problem:

      Is there possible to see the property of the selected edge? Also, I have the need to change some properties of the selected edge to make it the same like two adjacent edges. The edge I want to modify makes a knuckle on the shell plating – connection of the bulwark with the shell plating.
      Switching “crease edge” on or off does not help. 🙁

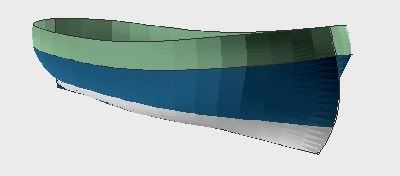

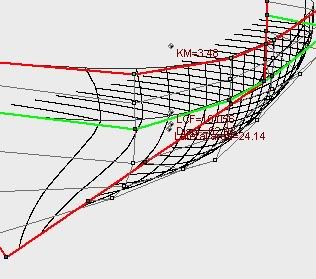

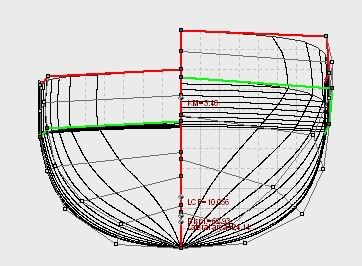

      Green edge is one I want to change.

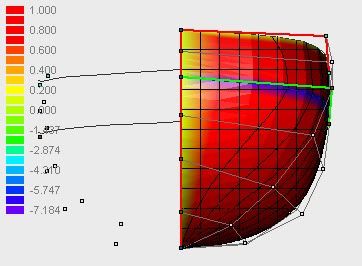

      The discontinuity of the outer surface is obvious when seeing at Gaussian curvature shading.

      Kind regards, Hrvoje

    • September 12, 2011 at 10:49 #35109
      Marven
      Keymaster

      A green edge indicates you have more than two faces connected to that edge, and in that case the edge is always set to a crease edge, otherwise the mathematics of the surface are ill defined.

    • September 12, 2011 at 11:00 #35110
      Hrvoje
      Participant

      A green edge indicates you have more than two faces connected to that edge, and in that case the edge is always set to a crease edge, otherwise the mathematics of the surface are ill defined.

      Yes, this edge is common for the shell plating, the deck and the bulwark. So, I should see the other way to make the frames on the bulwark tangential to that under the deck line.
      Thank you for the answer. 🙂

      Kind regards, Hrvoje
